The Boingfire BFTL2KB is a compact, fanless network appliance kit built for modern edge networking, security, and IoT workloads. At its core is the Boingfire BFTL2 system board with an Intel® Celeron® J3455 quad-core processor and 4 GB onboard DDR4 memory, delivering a balanced mix of performance and power efficiency for SME, branch, and advanced home deployments.

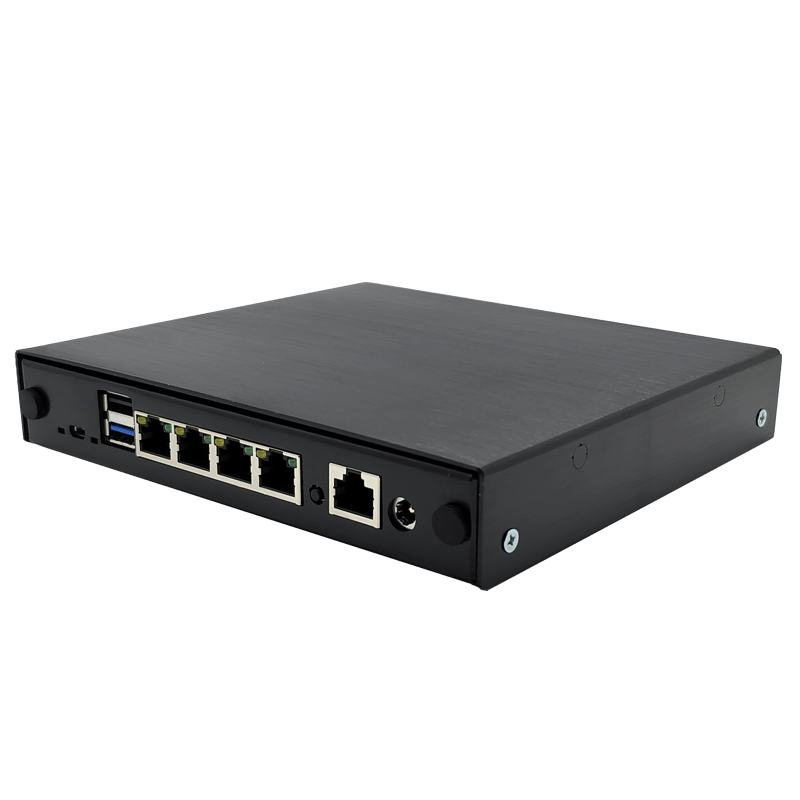

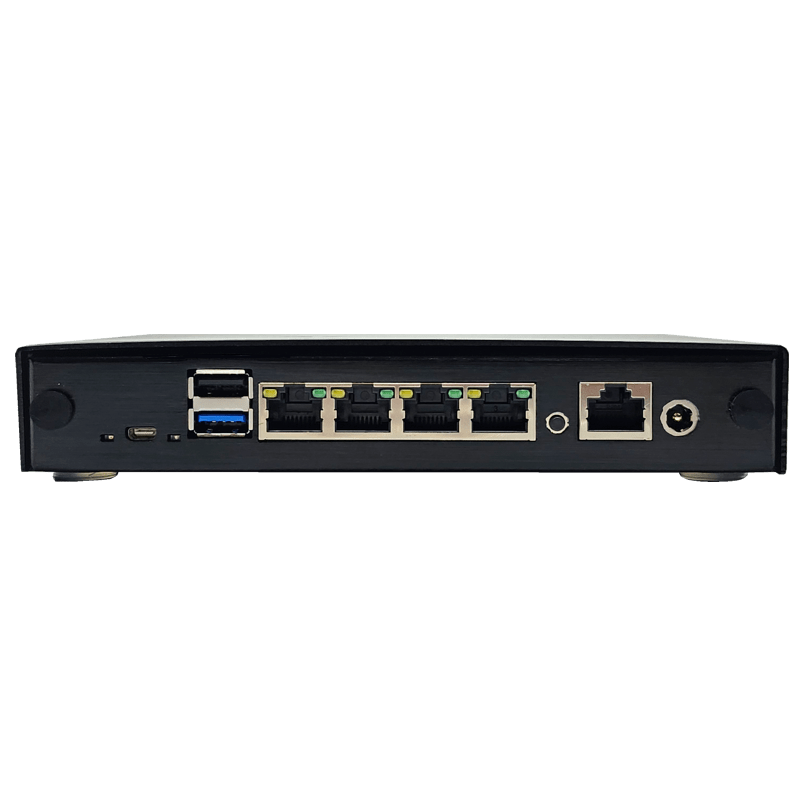

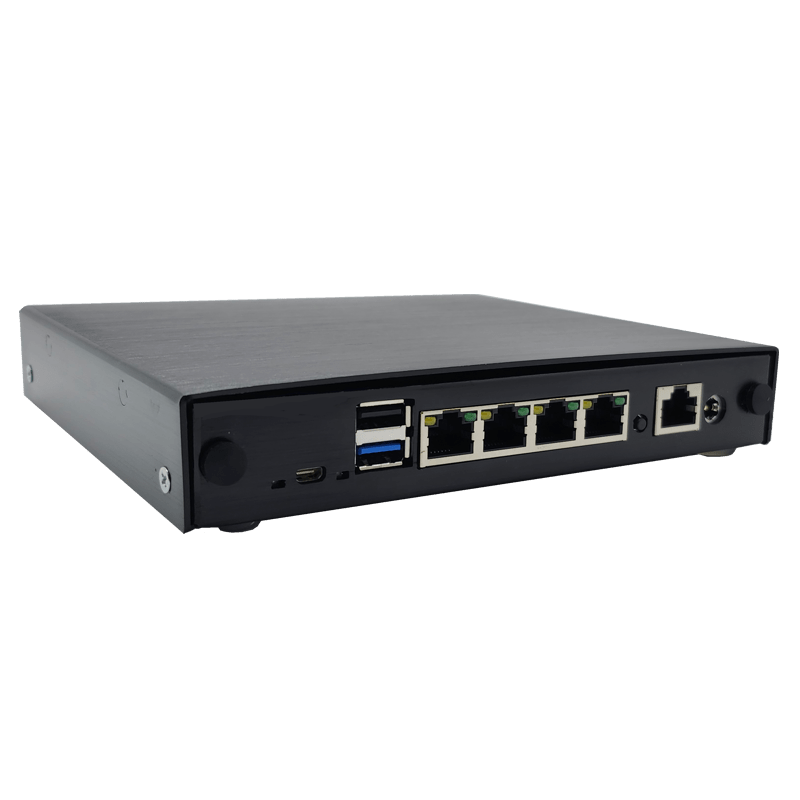

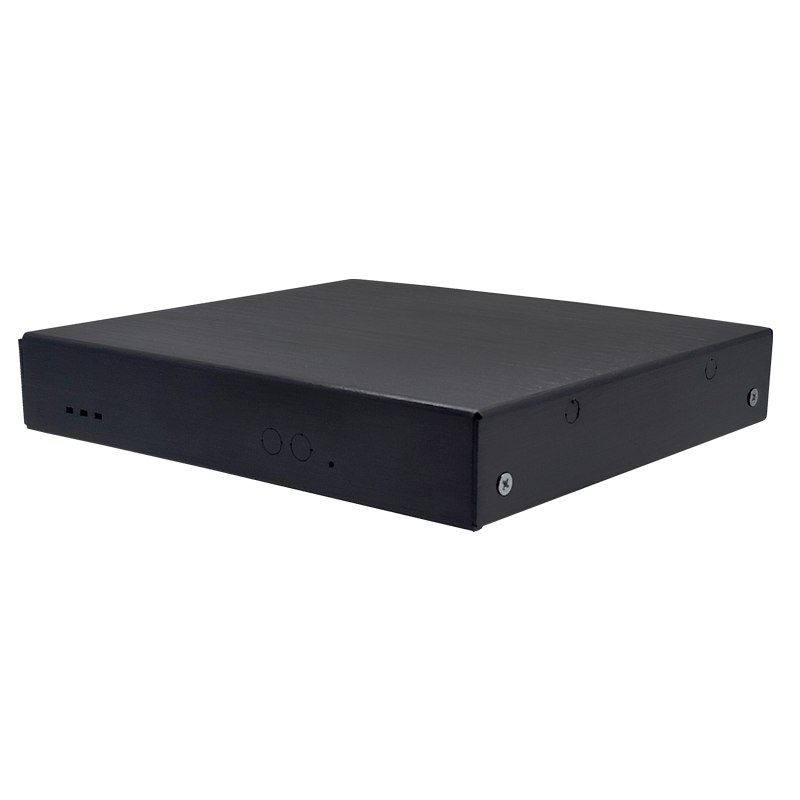

Housed in the BFCASETL2S black anodized aluminum enclosure, the BFTL2KB offers 4 × Intel I226-V 2.5GbE LAN ports, dual full-size mSATA slots, 4 Mini-PCIe and 1 M.2 B-key expansion slot, plus support for up to 4 SIM slots, enabling versatile wired and cellular topologies in a minimal footprint.
A pre-installed mSATA SSD (capacity selectable at order time) gives you reliable solid-state storage from day one. With its 12 V DC input and fanless thermal design, the BFTL2KB typically draws only about 7.2 W in firewall scenarios, keeping operating costs low while staying silent and robust 24/7.
Designed for open-source networking, the BFT platform is optimized for leading projects such as CentOS, OpenBSD, OPNsense® and FreeBSD, making the BFTL2KB a natural choice for integrators and power users standardizing on open platforms.
Key Points
-
2.5GbE on Every Port – Four Intel I226-V 2.5GbE ports give you headroom beyond legacy 1GbE appliances, ideal for multi-gig broadband and high-throughput inter-VLAN routing.
-
Fanless, Low-Power, Always-On – No moving parts, silent operation, and ~7.2 W typical consumption at 12 V in firewall/router workloads—built for 24/7 edge deployments.
-
Built-In Expansion for LTE/5G & Wi-Fi – 4 × Mini-PCIe plus 1 × M.2 B-key slot let you add multiple 4G/5G, LTE, or Wi-Fi radios, turning one box into a powerful SD-WAN or multi-WAN gateway.
-
Multi-SIM Flexibility – Support for up to 4 SIM slots allows multi-carrier designs, intelligent failover, or region-specific SIM selection for global deployments.
-
Enterprise-Grade Security & Reliability – Intel® CPU with AES-NI for fast VPN and IPsec tunnels, watchdog timer for automatic recovery, and optional TPM 2.0 for secure key storage.
-
Installer-Friendly Form Factor – Compact 189 × 157 × 29 mm aluminum enclosure fits easily in network cabinets, small racks, or tight edge locations.
-
Brandable & OEM-Ready – Optional custom port labels, enclosure logo printing, BIOS presets, and OS pre-installation let resellers ship fully branded solutions under their own name.
Typical Use Cases
-
Next-Gen Firewall / UTM
Deploy as an OPNsense®/FreeBSD-based firewall with multi-WAN, VPN, and IDS/IPS. Four 2.5GbE ports easily map to WAN, LAN, DMZ, and management segments. -
SD-WAN / Multi-WAN CPE
Combine wired WAN plus multiple LTE/5G links via Mini-PCIe/M.2 modules, use the SIM slots for carrier diversity, and build resilient SD-WAN or branch connectivity. -
VPN Concentrator / Remote Access Gateway
Quad-core J3455 with AES-NI accelerates IPsec/OpenVPN/WireGuard-class workloads, ideal for branch-to-HQ tunnels, remote worker access, or MSP-managed VPN services. -
IoT / Edge Computing Gateway
Use GPIO, serial ports, and cellular modules to connect field devices, industrial sensors, and remote sites while centralizing security policies at the edge. -
VoIP / IP-PBX Platform
Combine multi-WAN connectivity with an open-source IP-PBX stack and use the 2.5GbE ports for voice VLANs, SIP trunks, and management networks.
| Processor (CPU) | Intel Celeron J3455, Quad-Core (AES-NI) |
|---|---|
| Core | 4 (Quad Core) |
| CPU Frequency | 1.5GHz (Base) / 2.3GHz (Burst) |
| RAM | 4GB Onboard DDR4 (Non-removable) |
| Storage | 2 x Full-size mSATA slots (SATA 3.0, 6Gb/s) |
| Display Port | 1 x Micro-HDMI |
| Resolution | 4096 x 2160 @ 60Hz (4K) |
| Ethernet Ports | 4 x RJ45 2.5GbE |
| Ethernet Controller | Intel I226-V |
| Storage | Software RAID (OS-dependent), 1 x pre-installed mSATA SSD (capacity selectable) |
| Watchdog | System Reset, Programmable 1–255 sec / 1–255 mins, Disable |
| Power Button | 1 x Power Button |
| Reset Button | Via watchdog trigger header (internal) |
| Cooling Fan | Fan-less |
| Serial Port | 1 x RJ45 External, 1 x TTL Serial Header |
| Power | 12V ±10% only |
| Typical Power | 0.6A @ 12V (7.2W) |
| Max. Power | 5A @ 12V (60W) |
| GPIO | 24 x GPIO (Digital I/O) |
| USB | 2 x USB 2.0 (Internal), 1 x USB 2.0, 1 x USB 3.0 (Type A) |
| Mini PCIe Slot | 4 x Mini-PCIe, 1 x M.2 B-key slot (4G/5G) |
| Operating Humidity | Up to 95% RH @ 40°C (Non-condensing) |
| Storage Humidity | Up to 95% RH @ 60°C (Non-condensing) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Dimension | 189 x 157 x 29 mm (W x D x H) |
| Weight | 1.71 Lbs (Approx.) |
Each BFTL2KB kit includes:
-
Boingfire BFTL2 system board with Intel® Celeron® J3455 and 4 GB onboard DDR4
-
BFCASETL2S aluminum enclosure (pre-assembled)
-
1 × mSATA SSD, pre-installed (capacity chosen at order time)
-
12 V / 2 A DC power adapter with region-appropriate AC plug (NA/EU/UK, depending on SKU)
-
All internal cabling and connections required for normal operation
Optional (for projects and OEMs, on request):
-
Custom enclosure logo and port labels
-
Alternative power adapter (e.g., 12 V / 5 A for heavy expansion with multiple LTE/5G or Wi-Fi cards)
-
Pre-installed OS image (firewall, router, or Linux-based platform)
-
TPM 2.0 module, GPIO expansion cards, or additional mSATA SSDs
