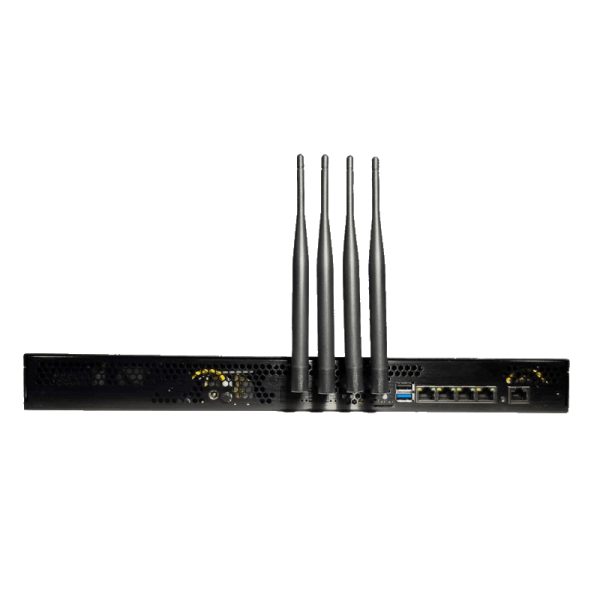

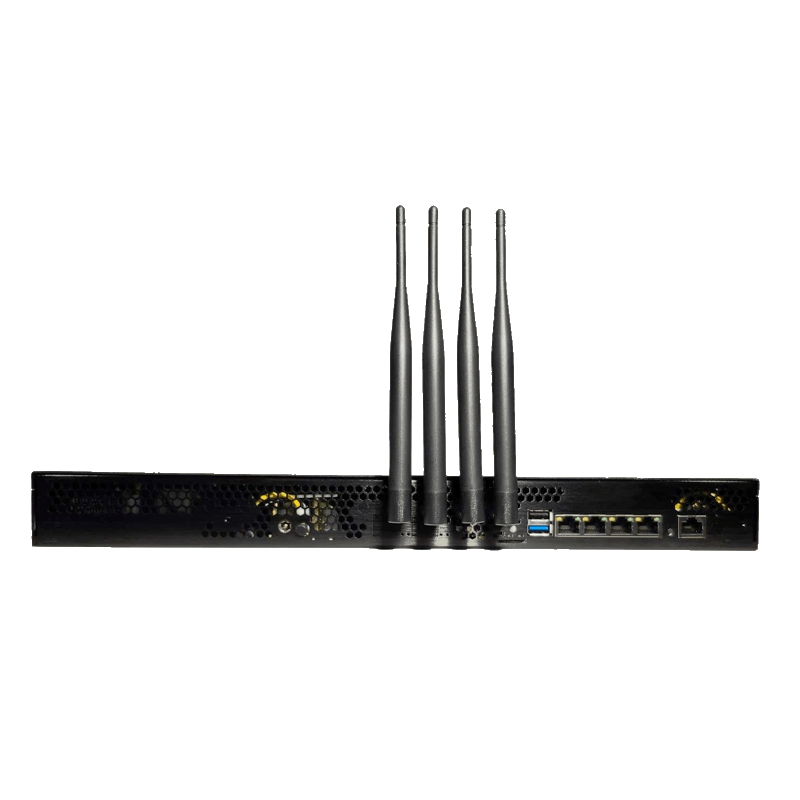

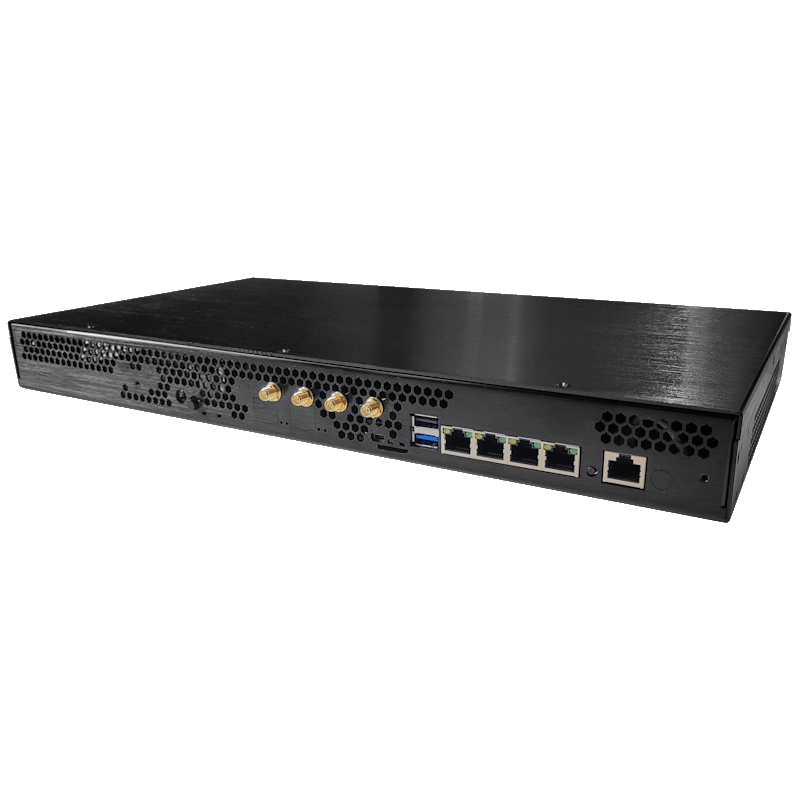

BFX2 5G Business Continuity Gateway

The Boingfire BFX2RMRU, featuring a built-in UPS and 5G connectivity, is a powerful and versatile solution for embedded and industrial applications, designed for exceptional performance and connectivity.

  •  5G/LTE Gateway – Quectel RM520N-GL module for ultra-fast 5G & LTE connectivity.
  • 4x High-Gain Antennas – Stronger signal, more exhaustive coverage, and better penetration.
  • Built-in UPS – 20-minute battery backup for zero downtime during power outages.
  • Enterprise-Grade Hardware – 16GB DDR4 RAM + 128GB mSATA SSD for high-performance routing.
  • 1U Rackmount Design – Compact, rugged chassis for server rooms, telecom, and industrial use.

Perfect for IoT, edge computing, and industrial automation, the Boingfire BFX2-RMRU offers robust performance in a compact, durable design.

(This is a Custom system based on standard BFX2RM)

Datasheet     Hardware Guide

SKU: BFX2-RMRU Category:

The Boingfire BFX2RMRU is a high-performance 1U rackmount system designed for enterprise networking, edge computing, and reliable connectivity. This 5G/LTE-ready gateway combines powerful hardware with uninterrupted power backup, making it ideal for mission-critical applications where high-speed wireless connectivity and uptime are essential.

Key Features:
✔ 5G/LTE Connectivity – Equipped with the Quectel RM520N-GL module, supporting global 5G and LTE networks for ultra-fast, low-latency internet. Includes four high-gain external antennas for optimal signal strength.
✔ Built-in UPS (20-Minute Backup) – Ensures continuous operation during power outages, keeping your network online without interruption.
✔ High-Performance Hardware – Powered by the Boingfire BFX2 board.
✔ 1U Rackmount Design – Compact, rugged chassis for easy deployment in server racks, telecom cabinets, or industrial environments.
✔ Enterprise-Grade Reliability – Ideal for business continuity, failover routing, remote sites, and IoT gateways.

Technical Specifications:

Model: BFX2RMRU (Standard Rackmount System)

CPU: Boingfire BFX2 Board (Specify CPU if available, e.g., Quad-core ARM/x86)

Memory: Customizable (16GB Standard)

Storage: Customizable (128GB Standard)

5G/LTE Module: Quectel RM520N-GL (Sub-6GHz, global bands)

Antennas: 4x SMA connectors + included high-gain antennas

Backup: Built-in UPS (20-minute runtime)

Networking Ports: 4 x RJ45 (2.5Gbps)

Form Factor: 1U Rackmount

Use Cases:

5G/LTE Failover Router – Automatically switches to cellular when the primary internet connection fails.

Edge Computing Gateway – Local processing for IoT, smart factories, or remote sites.

Enterprise Network Uplink – High-speed wireless WAN for offices, retail, or branch locations.

Mission-Critical Communications – Emergency services, industrial automation, and healthcare.

Why Choose the BFX2RMRU?
Always Online – Built-in UPS guarantees uptime during power fluctuations.
Future-Proof 5G – Ready for next-gen networks with the Quectel RM520N-GL module.
Scalable & Robust – Rackmount design fits seamlessly into professional IT environments.

Available Now – Contact Us for Custom Configurations!

Specifications:

Processor (CPU) Intel Celeron J6412 1.5M Cache (AES-NI)
Core 4 (Quad Core)
CPU Frequency 2.6GHz
RAM DDR4 3200MHz SODIMM, 32GB (Max)
Storage 1 x eMMC4.5, 1 x SATA2, 2 x mSATA
Display Port Micro-HDMI
Resolution 4096 x 2160 @ 60Hz
Ethernet Ports 4 x RJ45 (2.5Gbps)
Ethernet Controller Intel i226-V
Watchdog Programable 1~255 Sec, 1~255 Mins. Disable
Power Button 1 x Front
Reset Button 1 x Internal
Cooling Fan Fan-less (Optional)
Serial Port 1 x RJ45 External, 2 x TTL
Power 12V ±10% only
Typical Power 1.6A @ 12V (18W)
Max. Power 5A @ 12V (60W)
GPIO 24-bit GPIOs
5G/LTE RM520N-GL
UPS 32W (20 Mins backup)
USB 5 x USB2 (Internal) 1 x USB 2.0, 1 x USB3.0 (Type A)
Mini PCIe Slot 1 x 5G/LTE, 1 x WiFi7(M.2), 2 x mSATA
Operating Humidity 10 – 90% RH
Storage Humidity 5 – 95% RH
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to + 85 °C
Dimension 17 x 9 x 1.8 IN (LxWxH)
Weight 3.5 Lbs (Approx.)
