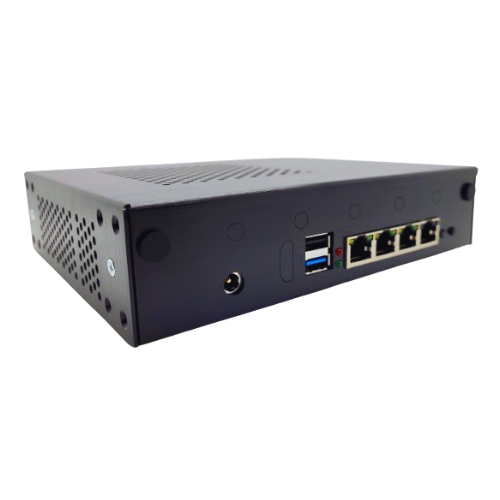

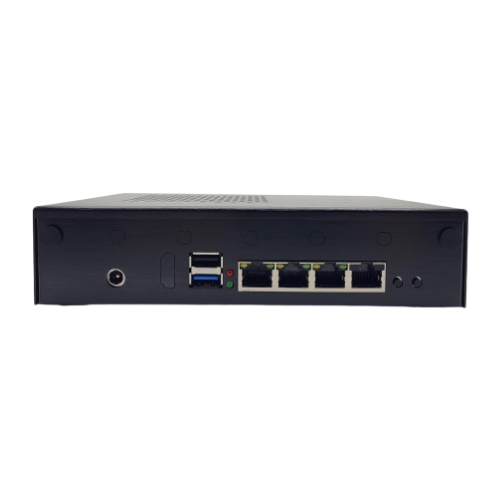

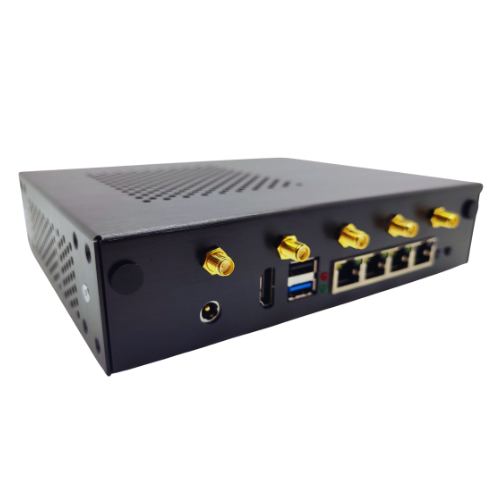

BFN5KB System

BFN5KBU-01
BFN5-02
BFN5-03
BFN5-04

After the great success of BFN4, Boingfire introduces a robust computing platform powered by the quad-core Intel Atom E3845 processor, clocked at 1.9GHz. This powerhouse is coupled with DDR3L memory, expandable up to 8 GB, ensuring fluid multitasking with TPM2.0. Dive into diverse storage options, including onboard eMMC4.5, an mSATA slot, and a SATA2 port with 3.0Gbps speed.

Visual experiences come alive on its HDMI port, supporting sharp resolutions of 2560 x 1600 @ 60Hz. The device’s connectivity is enhanced with four Gigabit Ethernet channels, all backed by the reliable Intel i211AT, and accompanied by four GbE RJ-45 ports.

Designed to withstand varying environments, this unit thrives in a wide range of humidity and temperature settings. Power is efficiently managed through a 12v 2A adapter and a similar input power rating. Safety is prioritized with a watchdog feature, adjustable timeouts, and easily accessible reset options. The icing on the cake is its fanless design, promising silent operations, coupled with additional features like an RJ45 serial port and an internal SATAII connector. Experience computing redefined with Boingfire.

Datasheet     Hardware Guide

SKU: BFN5KB Category:

Delve into a world of unmatched performance with the Boingfire BFN5KB. Designed for those who seek reliability and efficiency with TPM2.0 and need to install more than 1 wifi card, this system comes packed with features to supercharge your tasks.

Processor (CPU) Intel Atom E3845 2M Cache (AES-NI)
Core 4 (Quad Core)
CPU Frequency 1.9GHz
RAM DDR3L 1333MHz SODIMM, 8GB (Max)
Storage 1 x eMMC4.5, 1 x SATA2, 1 x mSATA
Display Port HDMI (1.4a)
Resolution 2560 x 1600 @ 60Hz
Ethernet Ports 3 x RJ45 Gigabit
Ethernet Controller Intel i211AT
Storage eMMC, SATA, mSATA (Selectable)
Watchdog Programable 1~255 Sec, 1~255 Mins. Disable
Power Button 1 x Front Pinhole, 1 x Rear Button
Reset Button 1 x Front Pinhole, 1 x Rear Button
Cooling Fan Fan-less
Serial Port 1 x RJ45 External, 2 x TTL
Power 12V ±10% only
Typical Power 0.5A @ 12V (5.28W)
Max. Power 5A @ 12V (60W)
GPIO 24-bit GPIOs
USB 2 x USB2 (Internal) 1 x USB 2.0, 1 x USB3.0 (Type A)
Mini PCIe Slot 4 x Mini-PCIe
Operating Humidity 10 – 90% RH
Storage Humidity 5 – 95% RH
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to + 85 °C
Dimension 6 x 7.5 x 1.5 IN (LxWxH)
Weight 2.4 Lbs (Approx.)

Equip yourself with the Boingfire BFN5KB, a fusion of state-of-the-art technology and ease of use. Whether for work or play, this system promises robust performance tailored to your needs.
