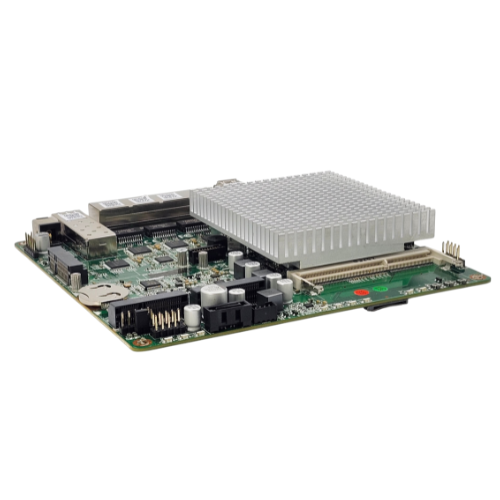

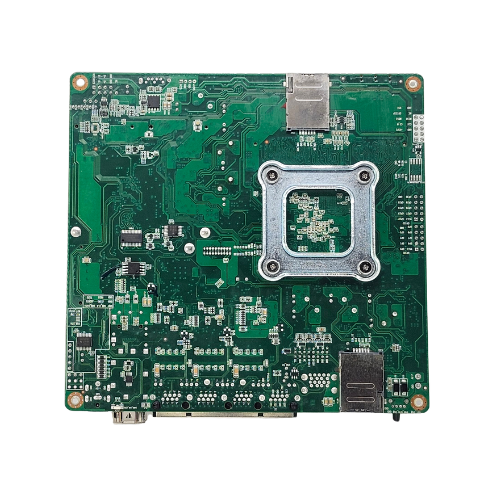

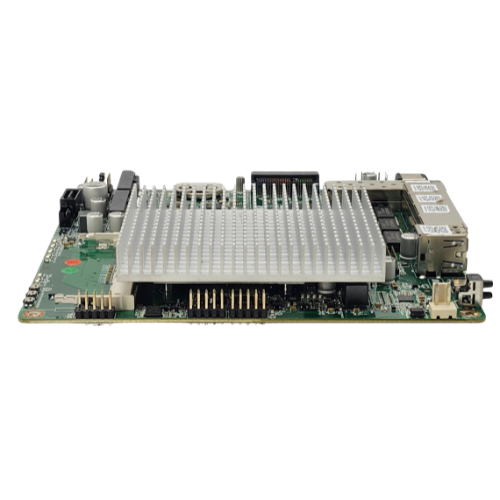

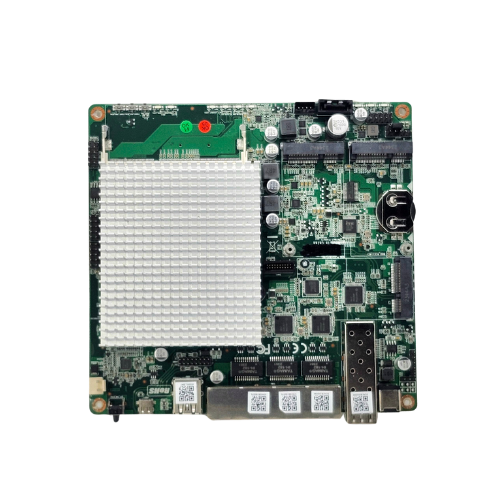

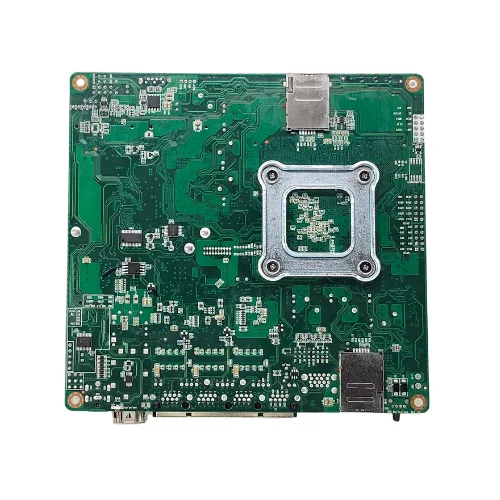

BFN6 System Board

The BFN6 System Board is a compact, high-performance embedded platform featuring the Intel Atom E3845 quad-core processor, which operates at 1.91 GHz and includes advanced AES-NI encryption. It supports up to 8 GB of DDR3L memory and provides a variety of storage options including mSATA and eMMC. This board offers a range of connectivity options with its Giga SFP, multiple RJ45 ports, and dual Mini PCIe slots for enhanced network flexibility. Designed for robustness, it includes a programmable Watchdog Timer and operates reliably across a wide temperature range. The BFN6 is an ideal choice for applications requiring a durable, high-security, and versatile embedded solution.

Key Features:

  • Powerful Processor: Quad-Core Intel Atom E3845 @ 1.9GHz. (AES-NI)
  • Diverse Storage: eMMC4.5, SATA2 3.0Gbps, and mSATA interfaces.
  • High-speed Connectivity: Three Gigabit Ethernet channels with Intel i210AT, One SFP Port Intel I210AS
  • Module: TPM2.0
  • Cellular Connectivity: Two 4G/LTE connections with Dual SIM Slots.
  • Efficient Cooling & Power: Fanless system and 12V-5A power consumption.

Datasheet     Hardware Guide

SKU: BFN6 Category:

High-Performance Processor

  •      CPU: Intel Atom E3845
    • Core: Quad-core configuration for efficient multi-tasking and processing.
    • Clock Speed: Operates at 1.91 GHz.
    • Cache: 2 MB L2 cache enhances processing efficiency.
    • Special Features: AES-NI support for accelerated encryption and decryption, enhancing security and performance.

Advanced Security

  • TPM 2.0: Provides hardware-based security features, supporting secure boot and safeguarding sensitive data against complex threats.


  • Type: DDR3L, offering a balance of performance and power efficiency.
  • Speed: 1333MHz, facilitating swift data handling and application responsiveness.
  • Capacity: Supports up to 8 GB via a single 204-pin SODIMM socket, allowing substantial memory headroom for demanding applications.

Connectivity and Expansion

  • Ethernet Controllers:
    • 3 x WGI210AT
    • 1 x WGI210AS (SFP) RJ45/Fiber
  • Dual Push-Push SIM Slot: Enhances network redundancy and flexibility with support for multiple carriers. Two Slots.
  • Expansion Slots:
    • 3 x mPCIe Slots, tailored for various configurations (1 x 4G/LTE, 1 x 4G/LTE and WiFi, and 1 x mSATA), thus providing ample options for additional functionalities and storage solutions.

I/O and Multimedia

  • 20 Channel GPIOs: Broadens the scope for custom configurations and control mechanisms in complex embedded systems.
  • Micro HDMI: Facilitates high-quality video outputs for multimedia applications.
  • eMMC Header: Offers a reliable and compact storage solution suitable for embedded environments.

Certification and Compliance

  • EMC Design: Enhanced to minimize electromagnetic interference, ensuring stable and reliable operation in sensitive environments.
  • Certifications: Fully certified with CE/FCC, affirming its compliance with international safety and operational standards.

USB Interface

  • USB 3.0: Provides high-speed connectivity for peripherals, ensuring efficient data transfer and device interactions.



Processor (CPU) Intel Atom E3845 2M Cache (AES-NI)
Core 4 (Quad Core)
CPU Frequency 1.9GHz
Storage 1 x eMMC4.5, 1 x SATA2, 1 x mSATA
Display Port 1 x Micro-HDMI
Resolution 2560 x 1600 @ 60Hz

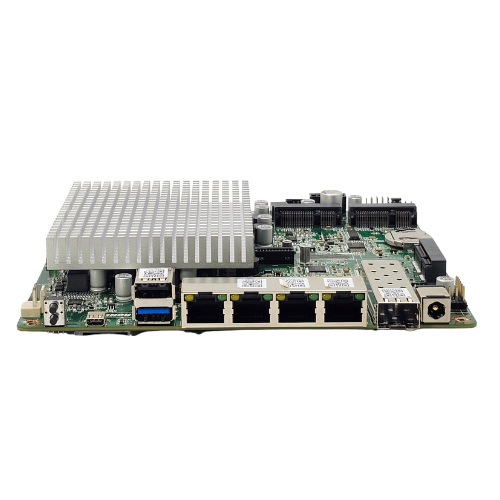

Ethernet Ports 1 x Giga SFP + 3 x RJ45 Gbps
Ethernet Controller Intel i210AT (RJ45), Intel i210AS (SFP)
Watchdog Programable 1~255 Sec, 1~255 Mins. Disable, Output: System Reset
Power Button 1 x Front Pinhole, 1 x Rear Button
Reset Button 1 x Front Pinhole, 1 x Rear Button
Cooling Fan Fan-less
Serial Port 1 x RJ45 External, 2 x TTL (Transfer rate up to 1 Mbit/s)
Power 12V ±10% only
Typical Power 0.5A @ 12V (5.28W)
Max. Power 5A @ 12V (60W)
GPIO 20-bit GPIOs
USB 2 x USB2 (Internal) 1 x USB2.0, 1 x USB3.0 (Type A)
Mini PCIe Slot 1 x 4G/LTE, WiFi, 1 x WiFi, 1 x mSATA
Operating Humidity 10 – 90% RH
Storage Humidity 5 – 90% RH
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to + 85 °C
Dimension 6 x 7.5 x 1.5 IN (LxWxH)
Weight 2.4 Lbs (Approx.)
