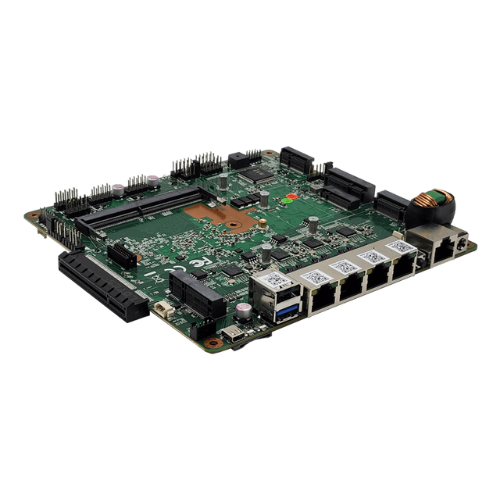

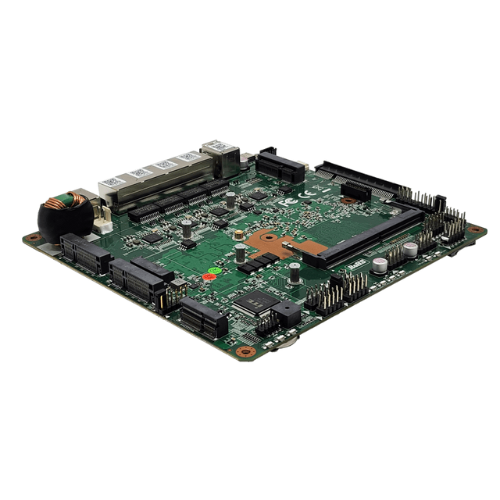

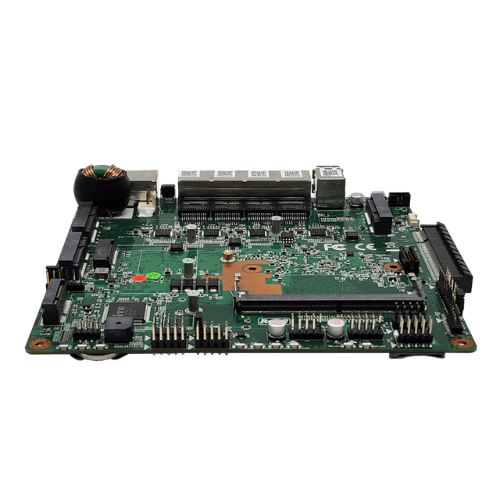

The BFX2 supports up to 32GB of DDR4 3200MHz memory via a single SODIMM slot, providing high-speed capabilities for data-intensive operations. Its flexible storage options include dual mSATA slots, an onboard eMMC module, and expansion possibilities for 4G, Wi-Fi 7, and 5G connectivity through dedicated Mini PCIe and M.2 slots. These features allow seamless wireless and mobile network integration, ensuring robust and future-proof connectivity.
Networking is a key strength of the BFX2, featuring four 2.5GbE LAN ports that provide high-speed wired connections for data-heavy applications. Adding an RJ45 COM port ensures compatibility with legacy devices and industrial systems. A Micro-HDMI port supports stunning visuals with resolutions up to 4096×2160 at 60Hz, catering to applications that require high-definition displays.
The BFX2 further enhances its functionality with 24-bit GPIOs, allowing for extensive customization and integration with peripherals and sensors. Its robust design, complemented by a convenient power button, ensures durability and reliability in industrial environments. Compact yet powerful, the BFX2 is well-suited for applications ranging from industrial automation and IoT devices to network appliances and digital signage.
Overall, the Boingfire BFX2 system board combines advanced processing, extensive connectivity, and versatile expansion options, making it an outstanding choice for modern embedded systems and industrial solutions.
Specifications:
| Processor (CPU) | Intel Celeron J6412 1.5M Cache (AES-NI) |
|---|---|
| Core | 4 (Quad Core) |
| CPU Frequency | 2.6GHz |
| RAM | DDR4 3200MHz SODIMM, 32GB (Max) |
| Storage | 1 x eMMC4.5, 1 x SATA2, 2 x mSATA |
| Display Port | Micro-HDMI |
| Resolution | 4096 x 2160 @ 60Hz |
| Ethernet Ports | 4 x RJ45 (2.5Gbps) |
| Ethernet Controller | Intel i226-V |
| Watchdog | Programable 1~255 Sec, 1~255 Mins. Disable |
| Power Button | 1 x Front Button |
| Reset Button | 1 x Internal |
| Cooling Fan | Fan-less (Optional) |
| Serial Port | 1 x RJ45 External, 2 x TTL |
| Power | 12V ±10% only |
| Typical Power | 1.6A @ 12V (16W) |
| Max. Power | 5A @ 12V (60W) |
| GPIO | 24-bit GPIOs |
| USB | 2 x USB2 (Internal) 1 x USB 2.0, 1 x USB3.0 (Type A) |
| Mini PCIe Slot | 1 x 4G/LTE, 1 x WiFi7(M.2), 2 x mSATA |
| Operating Humidity | 10 – 90% RH |
| Storage Humidity | 5 – 95% RH |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to + 85 °C |
| Dimension | 6 x 7.5 x 1.5 IN (LxWxH) |
| Weight | 1.98 Lbs (Approx.) |
